SHARP - JET / SHARP 6010


SHARP - JET / SHARP 6010


  • Characteristics

It is a medium coated all position, cellulosic coated electrode with a forceful, penetrating arc and a thin brittle slag. Gives a flat bead with high melting rate. The weld metal is highly ductile and of radiographic quality. Suitable for all position work. It is used in field work where good penetration is necessary in all positions. Good fit-up joints necessary.

    Designation of standards
  • AWS : E 6010
  • BS: E 4322C10
  • DIN :E 4332C4
  • IS EC 4310X
    Mechanical properties
  • Tensile Strength 450 - 540 N/mm2
  • Yield Strength 350 - 470 N/mm2
  • Elongation, (L=5d) 24 - 28 %
  • Impact Value, CVN 50 - 90 J at 00C
Product Description
Pipe lines
Pressure pipelines which cannot be welded from inside
Pressure Vessels

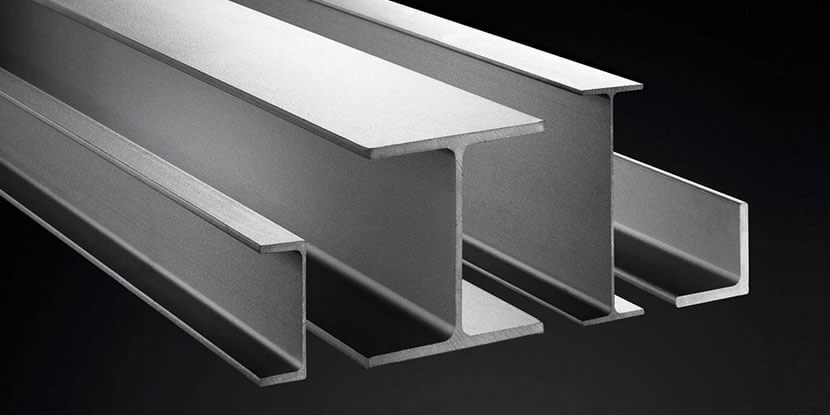

Structurals
C 0.06 to 0.12
Mn 0.30 to 0.60
Si 0.15 to 0.30
S&P 0.03
Diameter (mm) 2.5mm 3.15mm 4mm 5mm
Ampere 60 - 90 80 - 140 120 - 180 180 - 240
