SHARP - 316
- Characteristics
It is an all positional electrode depositing Mo-stabilised welds of radiographic quality and excellent creep strength. Ferrite is so controlled as to offer maximum resistance to corrosion, cracking and high temperatures upto 800°C. A low carbon 18/13/Mo stainless steel electrode makes the weld metal resistant to corrosive agents of a reducing nature.
- AWS : E 316 - 16
- IS : E19.12.2R26
Designation of standards
- Tensile Strength 510 N/mm2
- Elongation, (L=4d) 26%
- Impact Value, CVN 60 - 100 J at 27 +/- 20C
Mechanical properties
Product Description

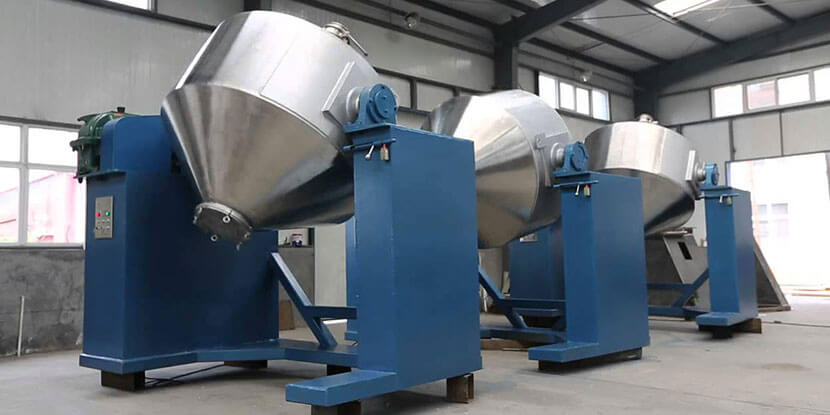

Chemical Mixers

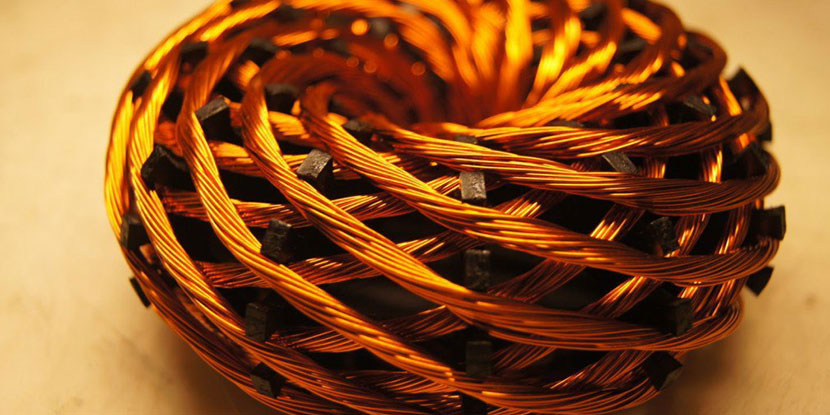

Coils
Dye Industries
Paint Industries
| C | 0.08 max |
| Mn | 1.50 to 2.50 |
| Si | 0.40 to 0.75 |
| Cr | 17 to 20 |
| Mo | 2.0 to 3.0 |
| S | 0.03 max |
| P | 0.04 max |
| Diameter (mm) | 2mm | 2.5mm | 3.15mm | 4mm | 5mm |
| Ampere | 30 - 50 | 40 - 60 | 80 -100 | 100 - 140 | 150 - 170 |
