SHARP- MONEL
- Characteristics
It is an all positional electrode having a a core wire of low melting point monel metal for cold welding cast iron without preheating and for getting a machinable weld on cast iron. The electrode gives a nickel-copper (monel) deposit.
- AWS E Ni - CuB
Designation of standards
Product Description
Building up of worn surfaces on Castings
Correcting of Machining Errors on Castings

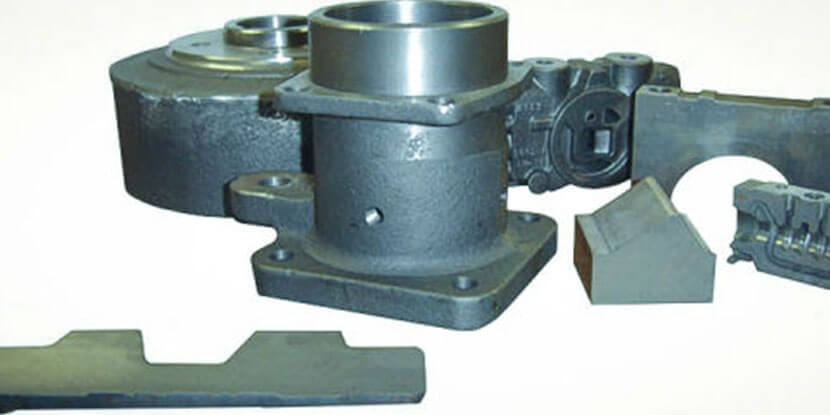

Fabricating Cast Iron Machine Components
Filling up Casting Defects
| C | 0.35 to 0.55 |
| Mn | 1.5 to 2.3 |
| Si | 0.75 |
| Ni | 60 to 70 |
| Cu | 25 to 35 |
| S | 0.025 max |
| Diameter (mm) | 2.5mm | 3.15mm | 4mm | 5mm |
| Ampere | 40 - 60 | 90 - 110 | 120 - 150 | 160 - 180 |
