SHARP - 310
- Characteristics
A medium heavy coated, rutile type all position electrode to give fully austenitic 25% Cr / 20% Ni weld deposit. Weld metal is scale resistant upto 1050°C. Low spatter loss, Smooth and uniform bead haing easy slag removal properties.
- AWS E 310 - 16
- IS E 25.20 R26X
Designation of standards
- Tensile Strength 560 N/mm2
- Elongation, (L=4d) 26%
- Impact Value, CVN 35 to 65 J at -500C
Mechanical properties
Product Description
AISI 310 type

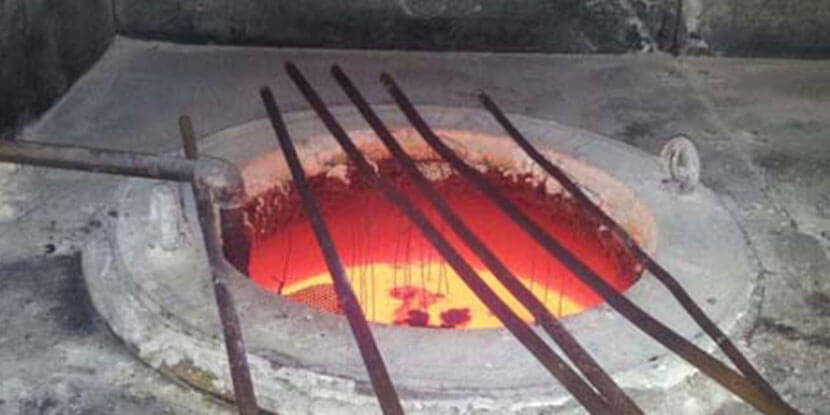

Carburising Pots
Cladding side of Stainless Clad Steels

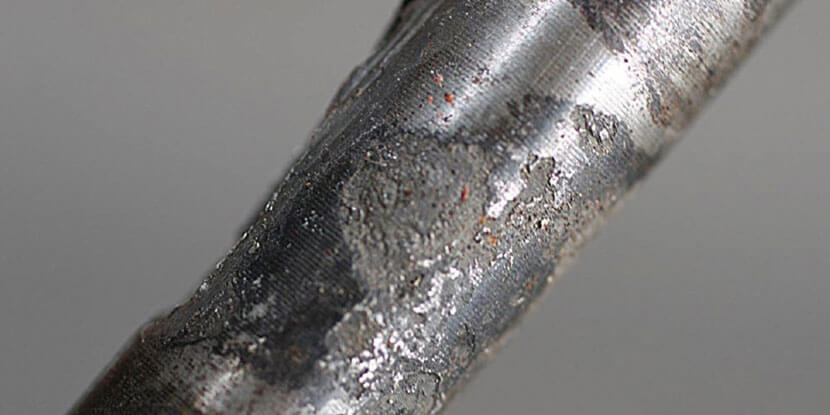

Dissimilar Steels
| C | 0.08 to 0.12 |
| Mn | 1.0 to 2.5 |
| Si | 0.30 to 0.70 |
| Cr | 25 to 28 |
| Ni | 20.0 to 22.5 |
| S | 0.03 |
| P | 0.04 |
| Diameter (mm) | 2mm | 2.5mm | 3.15mm | 4mm | 5mm |
| Ampere | 30 - 50 | 50 - 80 | 70 - 100 | 100 - 150 | 140 - 190 |
